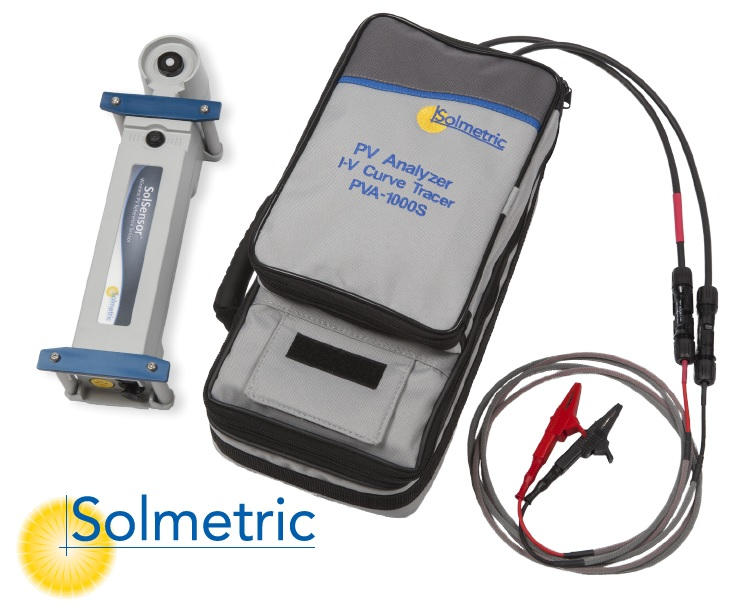

PVA-1000S PV Analyzer Kit is a 1000 volt I-V curve tracer with built-in PV performance modeling and advanced wireless irradiance, temperature and tilt sensing. It provides unprecedented measurement throughput and accuracy and delivers deep insight into the performance of your arrays.

The PV Analyzer is designed to work as hard as you do. High measurement throughput means it can measure 1 MW in less than 2 hours--even in hot environments where other curve tracers shut down. The rugged enclosure is moisture and dust resistant. The incident angle corrected SolSensor is able to make accurate irradiance readings in lower light conditions extending your working window.

I-V curve testing is the preferred method for commissioning, O&M, and troubleshooting of PV arrays because it provides the most complete performance measurement possible. Populations of curves can be analyzed quickly for outliers and data can be archived as a baseline for future reference if performance questions arise.

Included with the PVA-1000S

SolSensor Wireless PV Reference Sensor (included): Irradiance, module temperature, and tilt readings are captured at the instant the I-V curve is measured. Improves effectiveness of expected performance models. The SolSensor has a range of more than 300 ft and includes a module rail clamp and precision mounting system for POA alignment.

PVA Test Leads (included): Alligator-clips enable connecting directly to combiner box bus-bars. more...

I-V Data Analysis Tool (included): Excel macro for analysis of populations of curves and data plus report generation. more...

Options

Megger MIT430 (option): Find pinched wires and leakage problems before they become dangerous with the Megger^® Insulation Resistance Tester. The PV Analyzer software manages your meg-test data. more...

2 year Extended Warranty (option): Extends PVA-1000 warranty from one to two years.

Startup Training (option): 90 minutes of live expert training on how to effectively and safely use the PV Analyzer. more...
